Behind every stunning rendering lies a building that was never completed. This is not a designer’s regret — it’s a systemic deadlock in the entire construction paradigm.
1. Between Rendering and Reality: The “Construction Wall”
If you’re an architect, landscape designer, or project owner, you’ve almost certainly been through this:
During the presentation, the big screen showcases flowing curved walls, organically shaped landscape structures, and futuristic spatial installations — the client’s eyes light up, nodding enthusiastically. But when the scheme enters the construction phase, the contractor’s single remark — “This can’t be built” — resets every creative idea to zero.
This is no isolated case. In the field of irregular architectural design, more than 90% of schemes ultimately fail to materialize as originally drawn — they either get simplified into boxy “compromise versions,” or are abandoned altogether and replaced with conventional rectilinear assemblies.
Renderings are beautiful, but reality is brutal. So where does the problem actually lie?
2. The Triple Dilemma of Irregular Design Execution
Dilemma 1: The Ceiling of Formwork Technology
Traditional concrete casting relies on formwork. For rectilinear components, formwork fabrication is simple and efficient — a few cuts of timber or steel plate and you’re done. But the moment curves, double-curved surfaces, or free-form geometries come into play, the complexity and cost of formwork skyrocket exponentially.
The cost of a single curved formwork panel can be ten times — or more — that of a straight one. When the budget spreadsheet lands on the table, the client is often left with no choice but to make the “simplify” decision.
Dilemma 2: The Precision Limits of Manual Construction
On-site construction of irregular components relies heavily on artisan experience. The arc of a curve, the jointing of a custom node — everything hinges on the craftsman’s feel and naked-eye judgment.
The result: the flowing curves from the rendering turn into crooked “wiggly lines” on site; the precision joints envisioned in the design become a “patchwork wall” riddled with uneven gaps.
This is not a lack of effort from the craftsmen — it’s that the human hand has a physical precision limit when confronted with complex geometries.
Dilemma 3: Material Waste and Runaway Costs
Traditional irregular construction follows a “subtractive manufacturing” logic — pour a large block first, then cut, grind, and trim it into the target form. This process generates enormous waste, with material utilization rates often below 60%.
More waste means higher cost, longer construction periods, and lower likelihood of execution. It is a vicious cycle.
| Component Form | Formwork Difficulty | Cost Factor | Buildability |
| Linear / Rectangular | Very Low | 1× (Baseline) | High |
| Single-Curvature Arc | Low | 2–3× | Medium |
| Double-Curved | High | 5–8× | Low |
| Fully Free-Form | Very High | 10×+ | Very Low |
3. 3D Printing Construction: From “Can’t Be Built” to “Just Print It”
If the bottlenecks of traditional construction lie in formwork, labor, and materials, then 3D printing construction technology has achieved breakthroughs in precisely these three dimensions.
Breakthrough 1: No Formwork — Free-Form Direct Shaping
3D printing construction requires no formwork. The printer extrudes material layer by layer along a digital model path, directly “growing” the designed form. Whether single-curved, double-curved, or freely irregular, it is merely a difference in motion trajectory for the printer — the more complex the geometry, the more pronounced the advantage of 3D printing.
The logic of traditional construction is: “Build the mold first, then pour in the material.” The logic of 3D printing is: “Digital model drives directly; material stacks layer by layer.” The former is constrained by the mold; the latter is constrained only by imagination.
Breakthrough 2: Digital Precision — What You See Is What You Get
The precision of 3D printing is guaranteed by the digital control system. Every curve and every arc in the model is faithfully reproduced in the physical build. The 1:1 form in the rendering is the 1:1 form that gets printed — design is construction, and construction is design.

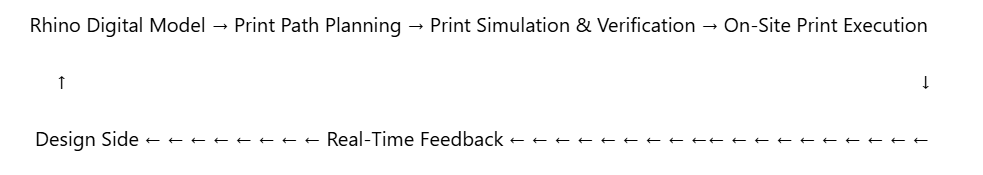

Take the printing workflow of AiUltraprod’s Geobuild platform as an example:
From design to construction, the entire workflow is digitally connected. Once the designer completes the model in Rhino, the platform automatically generates print paths, runs print simulations to verify feasibility, and then proceeds with on-site printing. Before construction even begins, you already know exactly what the final result will look like.
Breakthrough 3: Additive Manufacturing — Material Utilization Exceeds 90%
3D printing is “additive manufacturing” — material is placed only where needed, with virtually no waste. Combined with G02 recycled ink technology, solid waste can be converted into printing material, creating a closed-loop cycle: “Solid Waste → Recycled Sand → Printing Ink → 3D Printed Construction.”
Key Data:
Material utilization rate: 90%+, nearly double that of traditional irregular construction
G02 recycled ink technology achieves a 61% carbon reduction in wall components
From requirement to design draft in just 5 minutes — dramatically boosting design iteration efficiency
| Construction Method | Material Utilization | Waste Generated | Overall Cost |
| Traditional Formwork Casting (Irregular) | 50%–60% | Large Volume (Manual Handling) | Medium |
| Cutting & Grinding Shaping | 40%–55% | Very Large Volume | Very High |
| 3D Printing Construction | 90%+ | Minimal (Near Zero) | Significantly Lower |
4. From Blueprint to Built Form: Six Types of Irregular Landscape Installations Realized
Talk is cheap — let’s look at the real thing. In actual projects, 3D printing technology has successfully delivered six categories of irregular landscape installations — every one of them a form that traditional construction could barely achieve.
Case Overview
| Landscape Installation Type | Form Characteristics | Traditional Construction Challenge | 3D Printing Solution |
| Landscape Wall | Curved Gradients, Biomimetic Textures | Custom formwork cost extremely high; arc difficult to control manually | No-formwork direct printing; curved paths naturally conform |
| Landscape Structure | Organic Form, Integrated Structure | Multiple formwork sets + rebar tying + multi-step assembly | Integrated single-print forming; fewer steps and seams |
| Stepping Stones | Irregular, Natural Forms | Each piece unique shape; batch formwork impossible | Individually printed, each piece a “custom edition” |
| Bench / Seat | Curved Enclosure, Irregular Backrest | Double-curved formwork + irregular cutouts; extremely complex process | Direct print backrest and curved surface; one-step forming |
| Planter | Arced Structure, Flowing Lines | Curved precast elements + assembly + extensive gap treatment | Monolithic printed structure; digitally precise form fit |
Key Technical Support
The successful realization of these irregular landscape installations relies on three core technologies of the AIUP construction 3D printing robot:
1. Three-Layer Closed-Loop Attitude Compensation
Outdoor terrain is never flat. Traditional equipment operating on complex ground requires site leveling and foundation pouring first — itself a significant additional cost. The tracked printing robot features three-layer closed-loop attitude compensation, capable of sensing terrain changes in real time and automatically adjusting printing posture to maintain precision even on uneven ground.
2. Fused Perception Positioning
Outdoor construction lacks the controlled environment of indoor spaces — GPS signals, wind, and temperature fluctuations all affect positioning accuracy. Fused perception positioning technology integrates data from multiple sensors to achieve centimeter-level outdoor positioning, ensuring that the print path precisely aligns with the design model.
3. Terrain-Adaptive Slicing
Traditional 3D printing assumes a flat substrate. But outdoor construction sites feature endlessly varied terrain. Terrain-adaptive slicing technology dynamically adjusts printing parameters for each layer based on actual ground data, enabling the printed object to conform perfectly to the terrain — this is precisely the key that allows walls, stepping stones, and other landscape installations to be printed directly onto the natural ground.
5. Irregular Design Execution Capability Comparison
| Comparison Dimension | Traditional Irregular Construction | 3D Printing Construction |
| Form Freedom | Limited by formwork technology; complex curves difficult to achieve | Any form directly printable; the more complex, the greater the advantage |
| Formwork Dependency | Highly dependent; irregular formwork costs extremely high | No formwork; digital model drives directly |
| Construction Precision | Relies on manual experience; high precision variance | Digitally controlled; stable, repeatable precision |
| Material Utilization | 50%–60%, large waste volume | 90%+, near-zero waste |
| On-Site Terrain Adaptability | Requires site leveling; long preparation cycle | Tracked mobility + dynamic compensation; direct operation on complex terrain |
| Design to Completion | Design → Drafting → Formwork → Pouring → Stripping → Finishing | Design → Print Simulation → On-Site Printing |
| Design Revision Cost | Each revision requires remaking formwork; extremely costly | Just modify the digital model; marginal cost near zero |
| Carbon Emissions | High: material waste + formwork consumables + labor transport | Low: G02 recycled ink reduces carbon by 61% |
6. From the “Rendering Trap” to “What You See Is What You Get”
Let’s return to the question at the start: Why can’t 90% of irregular designs be built?
The answer is not that designers lack talent, nor that clients lack support — it’s that the traditional construction system is fundamentally ill-suited to realizing irregular forms. The three major bottlenecks — formwork, labor, and materials — each represents an insurmountable wall.
The significance of 3D printing construction technology lies not in it being “just another construction method,” but in how it redefines the relationship between design and construction:
Traditional Construction: Design is constrained by construction capability — renderings represent the “ideal state,” while actual construction becomes the “compromise state.”
3D Printing Construction: Construction obeys design intent — the digital model is the construction directive; what you see is what you get.
When a printing robot can walk into any terrain and print, layer by layer, the forms imagined in a designer’s mind from a digital model; when G02 recycled ink transforms solid waste into building materials while cutting carbon emissions by 61% — the execution of irregular design is no longer an engineering problem, but a choice.
Choose the right technology, and 90% regret can become 100% reality.
